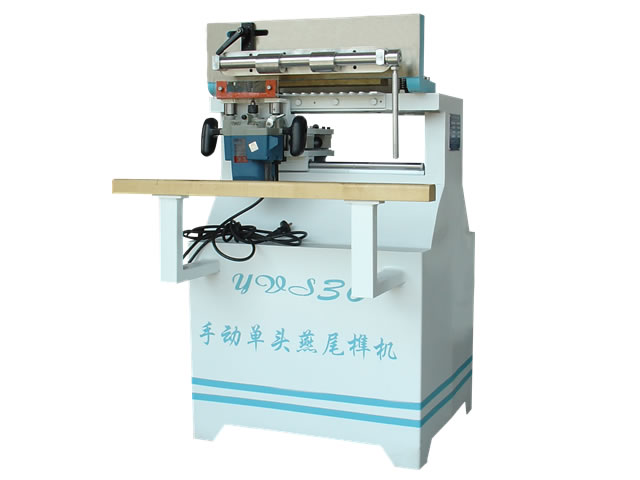

| MTYVS30 Manual Single-head Dovetail Tenoner |
| |
The machine adopts Transversal and Longitudinal precise guide rail, portable engraving machine which effect copying cutting by master plate. The machine is applicable to small-lot and single piece manufacturing with low price and convenient maintenance. Number of Shaft :1
Processing Width :300mm
Processing Thickness :22mm
Speed of Main Shaft :20000r/min
Install Power :1.4kw
|
........................................................................................................................................ |
| |
| MTYVS40D-ZS Automatic Single-head Dovetail Tenoner |
|
The machine which designed independently with years of manufacturing experience is a new generation of high efficiency automatic dovetail tenoner. The cutting and copying fittings adopts high precision linear guide rail drive which can cut precisely with long service life. Perfect lubricating system stabilized the running of the machine with longer service life. The controlling system employs German Siemens logical controller which is easy operating, easy maintenance and runs steadily & safely and applicable to various materials of different hardness. The cutting speed can be adjusted at random according to different hardness of materials and the processing width can also be chosen from 200mm, 300mm, 400mm according to materials of different width. The unique super high speed of returning and rotating greatly improved the production efficiency.
Number of Shaft :1
Processing Width :400mm
Processing Thickness :22mm
Speed of Main Shaft :19000r/min
Tenoning Spacing :25mm
Cutting Period :15～25s
Net Weight :500kg
Install Power :2.2kw
|
........................................................................................................................................ |
| |
| MTYVS50B-2Z Automatic Double-head Dovetail Tenoner |
|
The machine which designed independently with years of manufacturing experience is a new generation of high efficiency automatic dovetail tenoner. The controlling system employs German Siemens logical controller which is easy operating, easy maintenance and runs steadily & safely and applicable to various materials of different hardness. The machine which adopts two main shaft head for cutting is special for plate which is more than 300 mm and can minimize the processing period.
Number of Shaft :1
Processing Width :500mm
Processing Thickness :22mm
Speed of Main Shaft :19000r/min
Tenoning Spacing :25mm
Cutting Period :30s
Net Weight :650kg
Install Power :2.25kw
|
........................................................................................................................................ |
| |
| MTYVS40B-16Z Automatic Multi-head Dovetail Tenoner |
|
MTYVS40B-16Z Hydraulic Automatic 16-head Dovetail Tenoner which adopts the strong points of high performance and high efficiency of German, Italy, Japan and Taiwan similar products is the achievement of years manufacturing and practice experiences of our factory. The main shaft gear adopts particular high quality materials which processed by special heat treatment and the main shaft underprop adopts shaft bearing structure with high rotating speed, low noise and long service life. Perfect lubricating system stabilized the running of the machine with longer service life. The hydraulic pressure steadily smooth cutting force with several tool bits copying simultaneously which ensures the high processing effectiveness of materials with different hardness. The controlling system employs German Siemens logical controller which runs steadily and safely.
Number of Shaft :16
Processing Width :400mm
Processing Thickness :22mm
Speed of Main Shaft :7000r/min
Tenoning Spacing :25mm
Cutting Period :8～15s
Net Weight :600kg
Install Power :4.4kw
|
